Hispeedido Drop In Laminated IPS LCD Panel for Game Boy Advance SP
Hispeedido Drop In Laminated IPS LCD Panel for Game Boy Advance SP
Couldn't load pickup availability
✔ Free UK Shipping
Transform your handheld's visual performance with this premium Hispeedido laminated IPS LCD replacement screen upgrade. Designed specifically for the Nintendo Game Boy Advance SP, this true "drop-in" high-definition display completely outclasses both original front-lit (AGS-001) and back-lit (AGS-101) factory panels. Featuring crisp 720×480 HD resolution (9 pixels to 1 integer scaling), it delivers vibrant colours, wide 178° viewing angles, and completely eliminates trapped dust inside the screen gap forever.
Engineered for the easiest installation possible, this screen drops straight into original or aftermarket shells without any plastic trimming or cutting required.
Key Features & Specs
• Brand: Genuine Hispeedido (Drop-in Laminated Upgrade Kit)
• HD IPS Display: 720×480 resolution with point-to-point 9:1 pixel integer scaling and 178° ultra-wide viewing angles
• Pre-Laminated Glass Lens: Screen and glass lens are seamlessly fused as a single unit to eliminate screen gap reflections and dust buildup
• Same Original Display Area: Exact original 1:1 viewable screen size with zero image cropping
• 15 Brightness Levels & 8 Colour Modes: Easily tailor your visuals for any lighting condition
• Retro Pixel Effects: Built-in display modes including Normal, Retro Pixel, Scanline 1, and Scanline 2
• Dual Control Options: Adjust settings on the fly using built-in touch sensors or the console's physical brightness button
🛠️ Installation & OSD Menu Controls
• 100% No-Cut Drop-In Fit: Drops directly into standard OEM and aftermarket GBA SP shells with absolutely no shell cutting or shell modification required.
• Touch Controls (No Solder): Change brightness levels and cycle colour modes instantly using the built-in touch sensors.
• Full OSD Menu (1 Simple Solder Wire): Solder the included single wire to the brightness button test pad to unlock the on-screen menu:
- Short Press: Cycles through the 15 brightness levels.
- Hold for 5 Seconds: Activates / exits the on-screen display (OSD) menu.
- Long Press (in menu): Selects / toggles the highlighted adjustment item.
- Short Press (in menu): Adjusts the selected setting parameter.
📦 What's Included

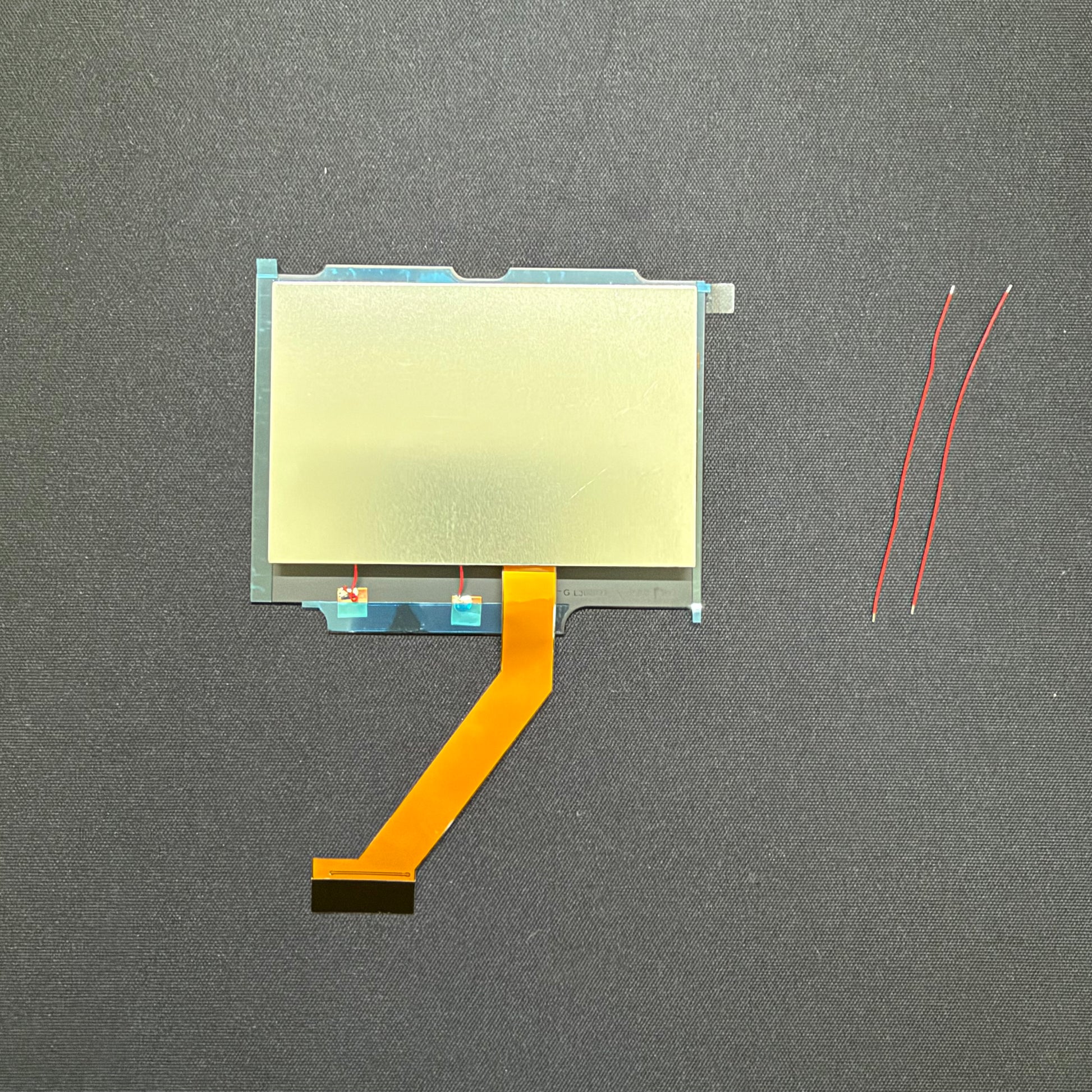

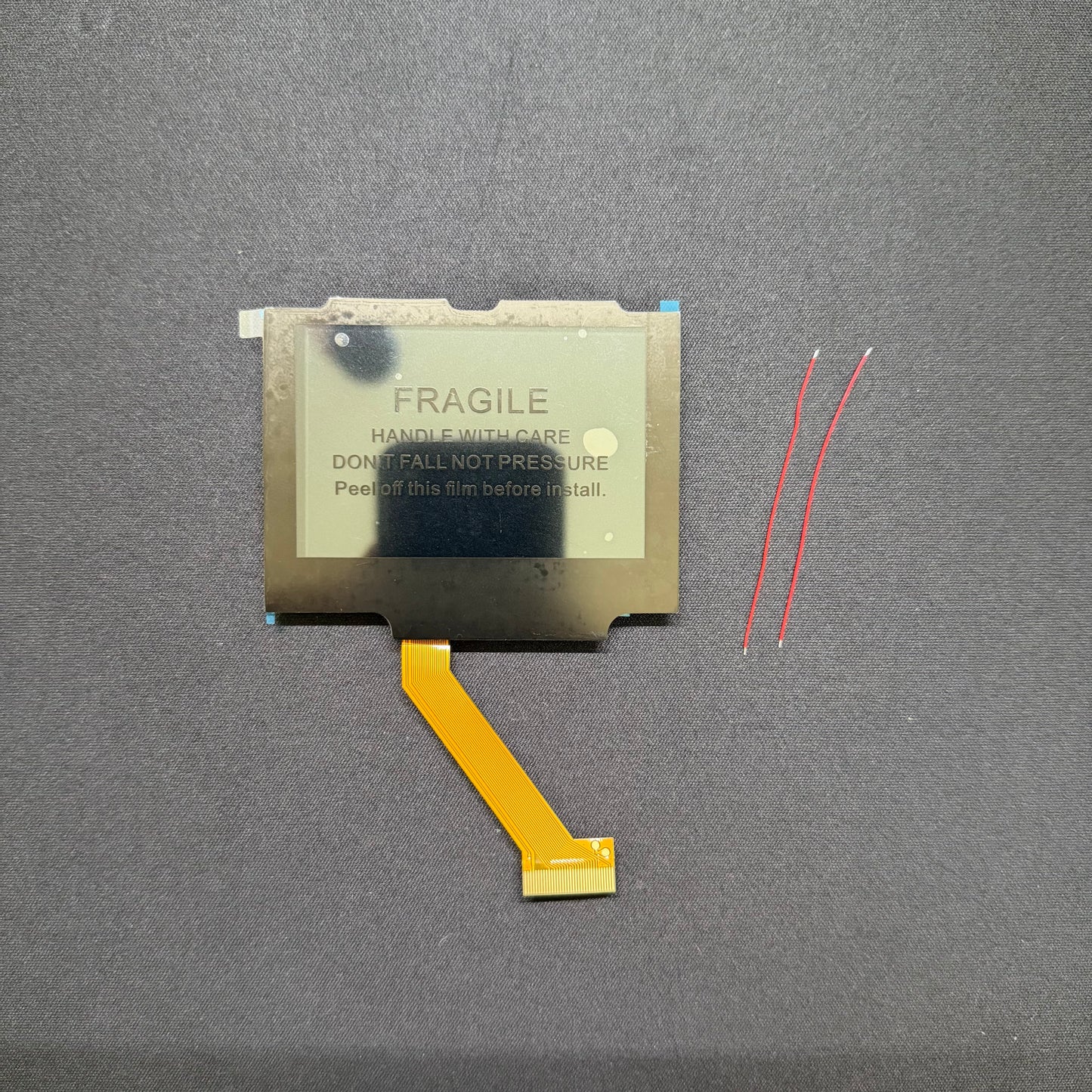

• 1x Hispeedido Pre-Laminated HD IPS LCD Screen Assembly
• 1x Red Solder Wire (for optional physical button OSD control)
Condition
• 100% brand new, premium quality upgrade kit

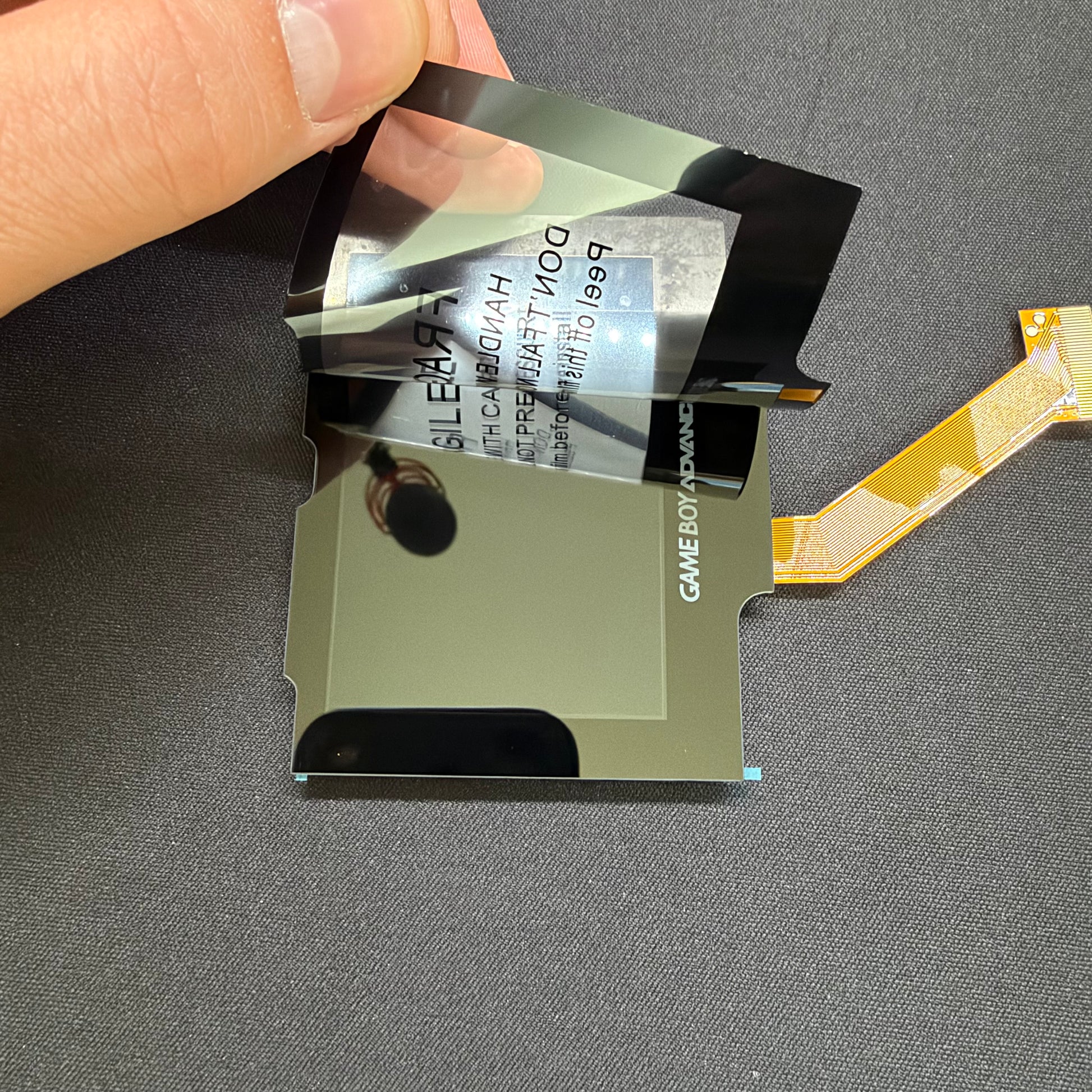

• Screen comes with a protective film layer; clean and securely packaged for immediate install
