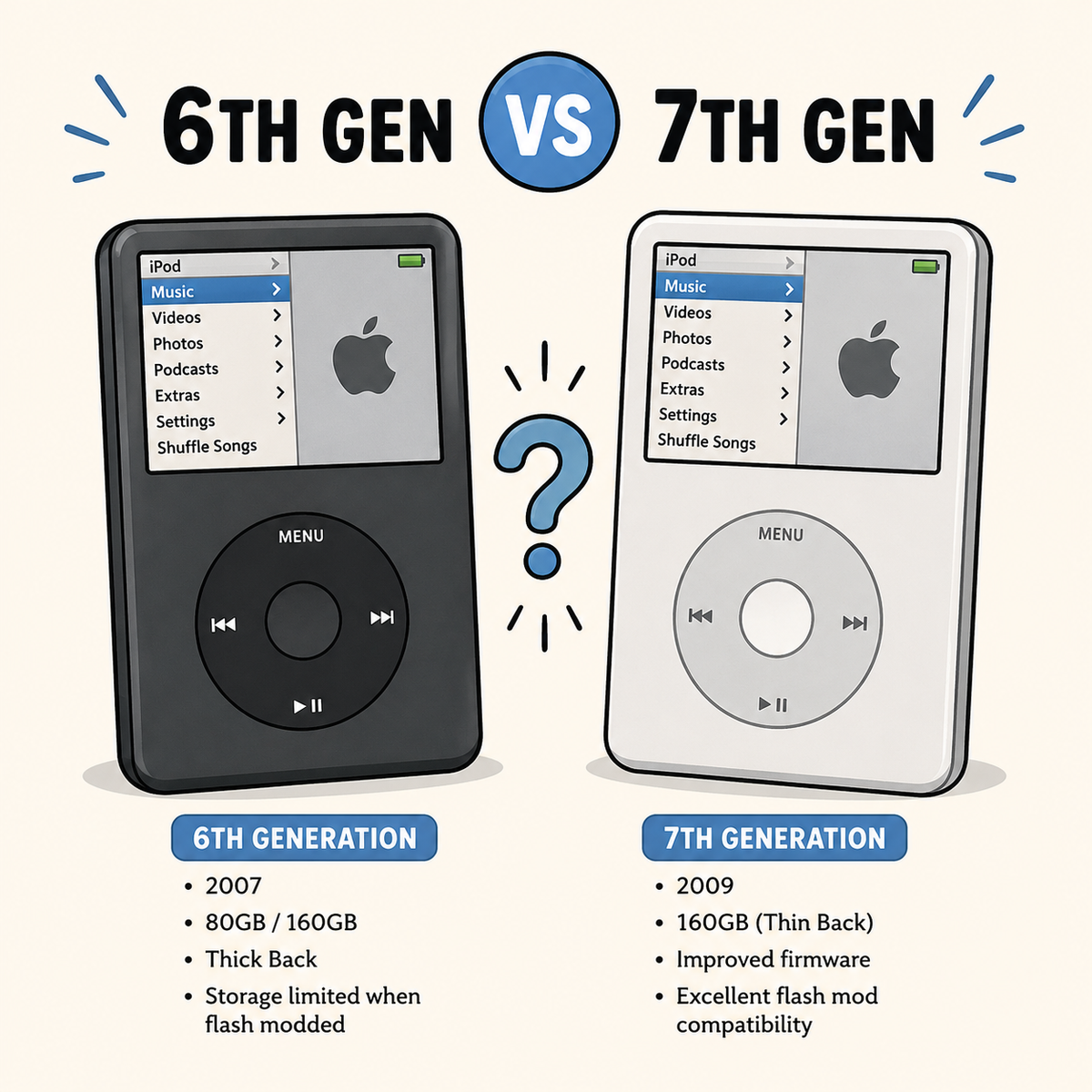

6th generation vs 7th generation iPod Classic: What’s the difference?

If you’re shopping for an iPod Classic, you’ll quickly come across references to 6th and 7th generation models.

To make things more confusing, you’ll also see “6.5 generation” mentioned, alongside second-hand listings that don’t always identify the model correctly.

The differences matter when planning an upgrade, but earlier models have more potential than you might think. At Retro Refresh, we’ve successfully carried out firmware conversions on earlier Classics to enable larger flash-storage builds.

Here’s how the models compare, and what to consider before choosing one.

Why does the generation matter?

If you’re keeping an iPod in its original configuration, your priorities will probably be its condition, battery health and storage capacity.

For a custom build, the logic board and firmware become more important. They help determine which storage upgrades are possible and whether additional work is needed.

The key distinction is between an iPod running its original firmware and one that has received a specialist firmware conversion.

6th-generation iPod Classic

Released in 2007, the original aluminium-front iPod Classic came in two capacities:

• 80GB with a thin rear housing.
• 160GB with a thick rear housing.

These models introduced the Classic’s familiar aluminium design and Cover Flow interface.

Flash-storage limitations with original firmware

When converted to flash storage using their original firmware, these models generally have a practical storage limit of around 128GB.

That limitation relates to the flash-storage configuration. It doesn’t mean the original thick 160GB model couldn’t use its factory-fitted 160GB hard drive.

If you’re buying an earlier Classic for a larger flash build, check whether it still runs its original firmware or has already been converted.

Can it support more than 128GB?

Yes. A specialist firmware conversion can allow compatible earlier Classics to run later Apple firmware and use larger flash-storage configurations while retaining Apple’s familiar interface.

We’ve successfully completed this conversion many times at Retro Refresh. An earlier Classic can therefore be a useful starting point for a larger build, rather than something you automatically need to replace.

The complete configuration still matters: the logic board, firmware, adapter and storage all need to work together.

6.5-generation iPod Classic

Released in 2008, this revision originally came with:

• 120GB of storage.
• A thin rear housing.

“6.5 generation” is an enthusiast term used to distinguish this model from the 2007 and late-2009 versions.

You’ll sometimes see the 120GB model advertised as a 7th generation. For clarity, this guide uses “7th generation” to mean the late-2009 thin 160GB model.

What about flash upgrades?

With its original firmware, the 120GB model also generally has a practical limit of around 128GB when flash modded.

Like compatible 2007 Classics, it can benefit from a specialist firmware conversion to enable larger flash-storage configurations.

If you already own a 120GB Classic, it’s worth checking your upgrade options before buying another iPod.

7th-generation iPod Classic

Released in late 2009, this model originally came with:

• 160GB of storage.
• A thin rear housing.

Its support for larger flash-storage configurations makes it a straightforward starting point for many custom builds.

Unlike earlier models running their original firmware, it doesn’t require the same firmware conversion to move beyond the approximately 128GB flash-storage limit.

How much storage can you install?

Builds using 512GB or 1TB are possible with suitable hardware and a tested configuration.

However, recognising the storage capacity and managing a very large music library are different things. Track count, file metadata and the iPod’s music database can affect how well a build performs.

More storage doesn’t mean unlimited songs, and the largest capacity isn’t always the best choice for your library.

Can a firmware conversion turn a 6th generation into a 7th generation?

It changes the software capabilities, not the original hardware generation.

A converted earlier Classic can run later firmware and support larger flash storage, but its logic board remains the original model.

For example, installing later firmware doesn’t add missing hardware for inline headphone controls to an original 2007 board.

That distinction matters when buying a modified iPod. A listing describing “7th generation firmware” doesn’t necessarily mean you’re buying a factory 7th generation device.

At Retro Refresh, we distinguish between the original hardware and any firmware conversion carried out as part of a build.

Thick vs thin rear housings

For an unmodified iPod, the original housing and capacity provide useful clues:

A thin rear housing doesn’t automatically mean a 7th-generation iPod.

Custom builds may also have replacement housings, different capacity markings or converted firmware. The outside of a modified iPod may no longer tell you which logic board is inside.

If you’re buying a donor, ask the seller to confirm the original model and any modifications.

Which one should you buy?

Choose a 6th or 6.5 generation model if:

• You find one in good condition at a sensible price.
• You’re happy with a smaller flash-storage build using its original firmware.
• You already own one and want to explore its upgrade potential.
• You’re planning a larger build with a specialist firmware conversion.

Earlier models can make excellent custom iPods. The important thing is to account for any conversion work when comparing the total cost.

Choose a genuine 7th generation model if:

• You want a straightforward starting point for a larger flash-storage build.
• You want to avoid the additional firmware-conversion work.
• You prefer the original late-2009 hardware.

A genuine 7th generation remains a good choice, but it isn’t the only route to a high-capacity Classic.

Already own an earlier Classic?

Before buying a replacement donor, check what you already have.

A healthy 6th or 6.5 generation logic board may be suitable for the build you want. A firmware conversion could let you keep your existing iPod while upgrading its storage, battery and appearance.

We’ve carried out these conversions many times and can help assess a suitable configuration for your device and music library.

Need help choosing?

The best donor depends on its condition, the upgrades you want and the overall cost—not just the generation advertised in the listing.

For a larger build, a genuine 7th generation is a straightforward option. A compatible earlier Classic with a firmware conversion can also be a practical alternative.

Read our guide to identifying your iPod model, or get in touch with a few photos and details of what you’d like to build.
